FEDA cam thread making machine automatic feeding thread rolling machine

Hydraulic thread making machine automatic feeding thread rolling machine

Product Parameters:

Model Number				FD-3T
Diameter of workpieces				φ2-φ10/mm
Range of pitch rolled				0.4-1.5P
length of thread rolled				28mm
Spindle speed				27rpm
Outside diameter of rolling die				φ100mm
Inside diameter of rolling die				φ50.5mm
Thickness of rolling die				30mm
Distance between the roller shaft				90-130mm
Main power motor				1HP(735W)
Distance from lathe bed to rolling die				85mm
Supply voltage				380V
Weight(reference)				280(KG)
Shipping measurement(L*W*H)				780*680*870mm
Dimension(L*W*H)				650*600*750 mm
Bearing brand				NSK,UBC
Certification				ISO 9001-2008, CE

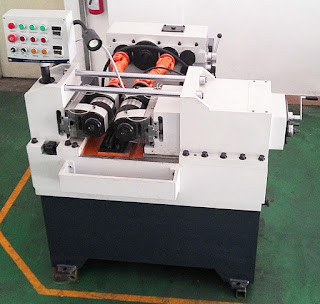

Product Pictures:

Jeff Lee

Shenzhen Feda Machinery Industry Co., Ltd

Website1: www.szfeda.com

Website2: www.szfeda.en.alibaba.com

WhatsApp&Phone:  +86-13612982050

Skype:  adolph168    QQ: 2726608011   Wechat: loveme1688168

Add: Room 2010, Gebu Commercial Building 3, Red Star Community, Bao' an District, Shenzhen, Guangdong, China. Post code: 518105

FEDA Automatic hydraulic thread making machine bolts making machine knurling machine

FEDA Automatic hydraulic thread making machine bolts making machine knurling machine

Product Parameters:

Model Number				FD-30S
Work piece diameter				φ4-φ50/mm
Range of pitch rolled				1.0-3.5P
Max.length of thread rolled				Fixed and rolling-through for option
Spindle speed				16/25/40/63rpm
Outside diameter of rolling die				φ115mm-φ175mm
Inside diameter of rolling die				φ54mm
Thickness of rolling die				120mm
Min.Distance between die spindles				110mm
Max.Distance between die spindles				230mm
Output(pcs/min)				4-20 pcs/min
Machine motor				5.5HP(4042W)
Hydraulic motor				2HP
Max. feed pressure				15T
Supply voltage				380V

Product pictures:

Jeff Lee

Shenzhen Feda Machinery Industry Co., Ltd

Website1: www.szfeda.com

Website2: www.szfeda.en.alibaba.com

WhatsApp&Phone:  +86-13612982050

Skype:  adolph168    QQ: 2726608011   Wechat: loveme1688168

Add: Room 2010, Gebu Commercial Building 3, Red Star Community, Bao' an District, Shenzhen, Guangdong, China. Post code: 518105

FEDA thread rolling dies threading mould flat die thread rolling dies

FEDA thread rolling dies threading mould flat die thread rolling dies

Jeff Lee

Shenzhen Feda Machinery Industry Co., Ltd

Website1: www.szfeda.com

Website2: www.szfeda.en.alibaba.com

WhatsApp&Phone:  +86-13612982050

Skype:  adolph168    QQ: 2726608011   Wechat: loveme1688168

Add: Room 2010, Gebu Commercial Building 3, Red Star Community, Bao' an District, Shenzhen, Guangdong, China. Post code: 518105

Feature		(1)Normally there are 2 or 3 pcs of rolling dies per set,     with higher precision, stability and durability. (2)Mainly used in irregular-shape workpiece.
Application		To be widely used in iron material before heat treatment, carbon steel, stainless steel, and so on.
Prodution range		(1)Thread size standards: Metric, U series, W series and so on. (2)Dimension range: - Outer dia. : Max. 400mm - Width : Max. 300mm - Bore dia. : Max. 100mm - Thread pitch : Min. 0.25mm
Dimention		Outer dia., thickness, and bore dia., can be produced according to machine types or your need
Thread limit		H/6
Material		Mold steel
Certification		ISO 9001-2008, CE
Surface treatment		Nitride treatment
Lubrication		Non-water soluble and vegetable oil
Machine		Applicable to different brands of rolling machines
Application industries		Fastener industry

FEDA Screw making machine thru feed automatic thread rolling machine FD-3TGT

FEDA Screw making machine thru feed automatic thread rolling machine FD-3TGT

Jeff Lee

Shenzhen Feda Machinery Industry Co., Ltd

Website1: www.szfeda.com

Website2: www.szfeda.en.alibaba.com

WhatsApp&Phone:  +86-13612982050

Skype:  adolph168    QQ: 2726608011   Wechat: loveme1688168

Add: Room 2010, Gebu Commercial Building 3, Red Star Community, Bao' an District, Shenzhen, Guangdong, China. Post code: 518105

Work piece diameter				φ2-φ10/mm
Range of pitch rolled				0.4-1.5P
length of thread rolled				no  limited
Spindle speed				50rpm
Outside diameter of rolling die				φ100mm
Inside diameter of rolling die				φ50.5mm
Thickness of rolling die				30mm
Distance between die spindles				90-130mm
Machine motor				2HP(1470W)
Distance from lathe bed to rolling die				85mm
Supply voltage				380V

FEDA Welcome customers from Russia

Three customers from Russia, come to visit our FEDA factory.

We discuss the business about thread rolling machines and other things.

As a younger, i think, i should learn from them, they are all successful.


And hope you can come to China, then come to visit our factory.

Jeff Lee

Shenzhen Feda Machinery Industry Co., Ltd

Website1: www.szfeda.com

Website2: www.szfeda.en.alibaba.com

WhatsApp&Phone:  +86-13612982050

Skype:  adolph168    QQ: 2726608011   Wechat: loveme1688168

Add: Room 2010, Gebu Commercial Building 3, Red Star Community, Bao' an District, Shenzhen, Guangdong, China. Post code: 518105

FEDA Thread rod making machine thread making machine FD-30D for railway spike screws

FEDA Thread rod making machine thread making machine for railway spike screws

Specifications:

Specification
Working diameter	12.7-27mm
Range of pitch rolled	6-13mm
Length of thread rolled	Max.300mm
Spindle speed	280rpm
Outside diameter of rolling die	φ80.5mm
Inside diameter of rolling die	φ39mm
Thread rolling die length	60mm
Output(pcs/min)	10-15(pcs/min)
Main power motor	22KW
Supply voltage	AC380V / 50Hz
Weight(reference)	3900KG
Motor Dimension	110*130*90mm
Machine Dimension(L*W*H)	4100*1100*1300mm

Contacts:

Jeff Lee

Shenzhen Feda Machinery Industry Co., Ltd

Website1: www.szfeda.com

Website2: www.szfeda.en.alibaba.com

WhatsApp&Phone:  +86-13612982050

Skype:  adolph168    QQ: 2726608011   Wechat: loveme1688168

Add: Room 2010, Gebu Commercial Building 3, Red Star Community, Bao' an District, Shenzhen, Guangdong, China. Post code: 518105

FEDA Anchor bolts making machine thread rolling machine FD-25S

FEDA Anchor bolts making machine thread rolling machine FD-25S

Specifications:

Work piece diameter				φ4-42/mm
Range of pitch rolled				0.7-3.0P
Length of thread rolled				Fixed and rolling-through for option
Spindle speed				36/47/60/78rpm
Outside diameter of rolling die				φ135mm-φ170mm
Inside diameter of rolling die				φ54mm
Thickness of rolling die				110mm
Min.Distance between die spindles				120mm
Max.Distance between die spindles				240mm
Output(pcs/min)				4-20 pcs/min
Machine motor				5.5HP(4042W)
Hydraulic motor				3HP
Max. feed pressure				15T
